We Stock A Big Range Of LED Drivers

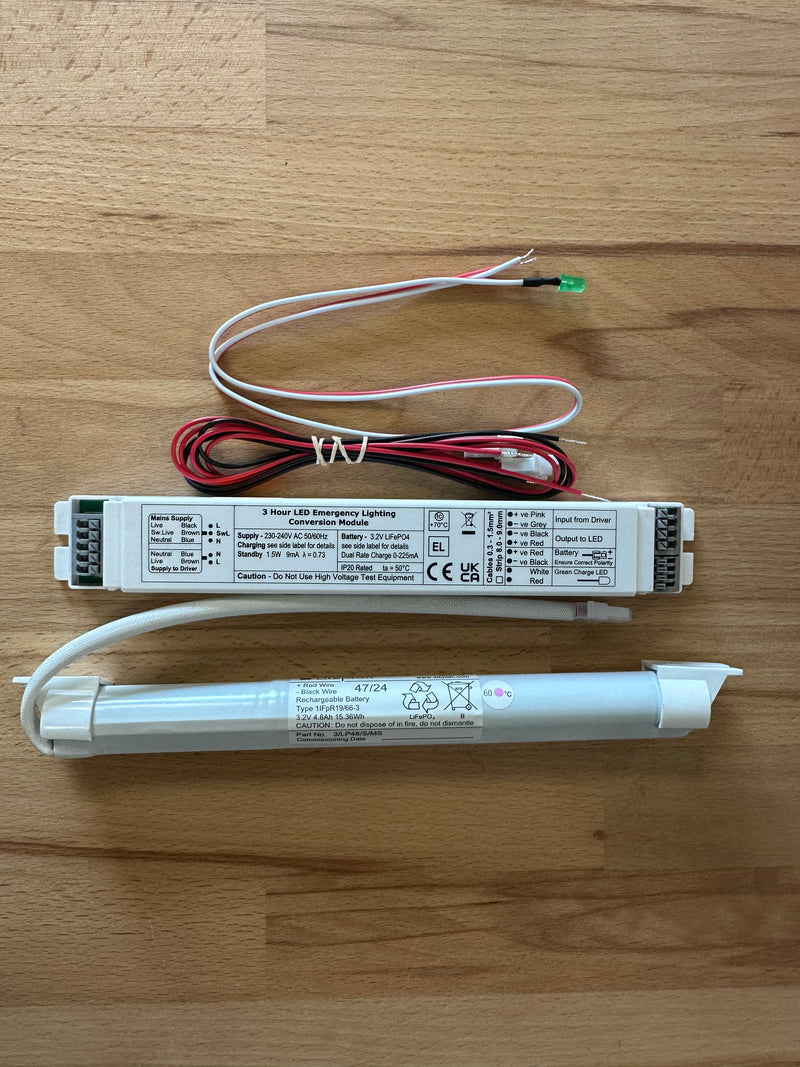

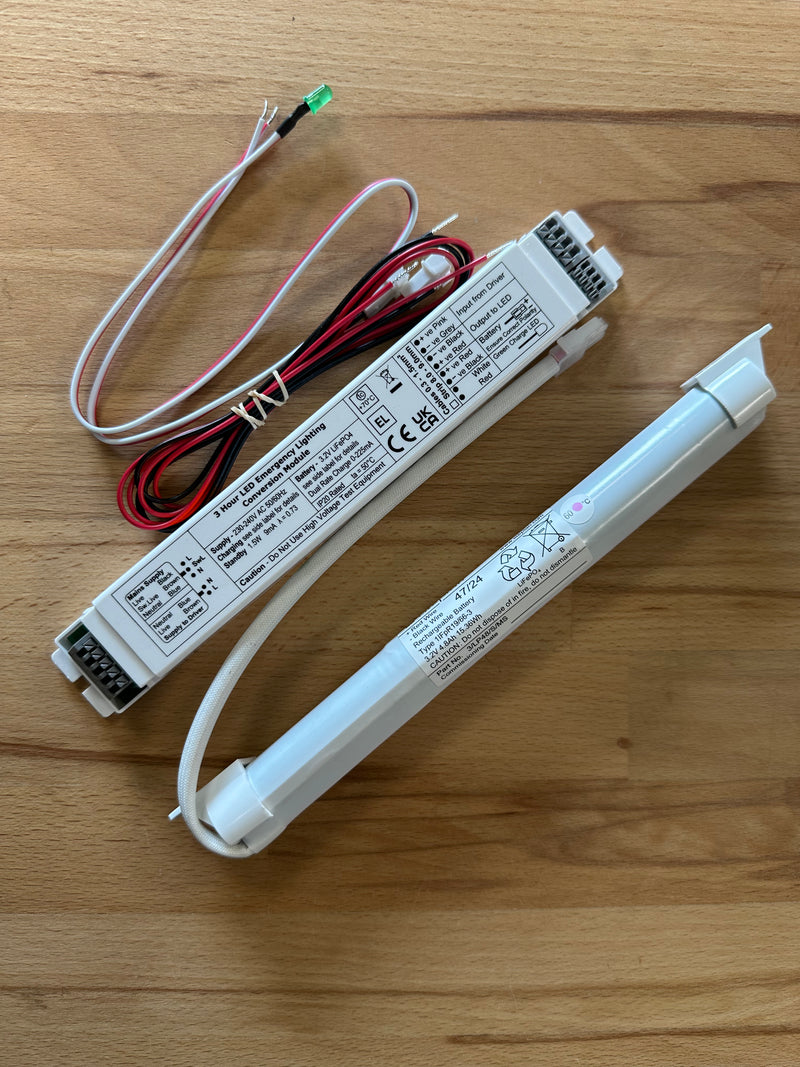

Liteplan TLP1S-K High Voltage Basic Conversion Kit
The TLP range, is a high quality 3 hour switchable emergency lighting module designed to suit a wide range of LED types, circuits and applications. Whilst the TLP is designed for high voltage LEDs or longer linear applications, it can run certain self-driven lamps like GU10s (subject to testing). The unit is designed to work with lithium iron phosphate (LiFePO4) batteries and is available in 2 versions, one with PCB terminal blocks, for internal mounting inside a luminaire, or a pre-wired version for mounting remotely from the luminaire where integral mounting is not possible. The module automatically adjusts the output current to provide the best match between the battery and the load, providing maximum illumination whilst ensuring full battery duration. The module is supplied with a green charge healthy indicator LED. This range uses the latest LiFePO4 battery technology, dramatically reducing energy consumption and facilities management labour.
The TLP range has been independently certified by TÜV to ensure that the product, has been tested for safety and that it complies with the requirements of national and international regulations.
LED Voltage Range | 55-300V | ||||
---|---|---|---|---|---|
I Rated | 38mA - 7mA | ||||
P Rated | 3W - 80W | ||||
Open Circuit Voltage | 340V | ||||
Bat. Current Limit | 1100mA | ||||
Mains Supply | 230-240V AC 50/60Hz | ||||
Power Rating (charging) | 2.5W 15mA λ = 0.70 | ||||
Power Rating (standby) | 1.3W 9mA λ = 0.60 | ||||
Charge Current | 225mA nominal | ||||
Recharge Period | 24 hours | ||||
Battery Pack | 3.2V 4.8Ah LiFePO4 |
